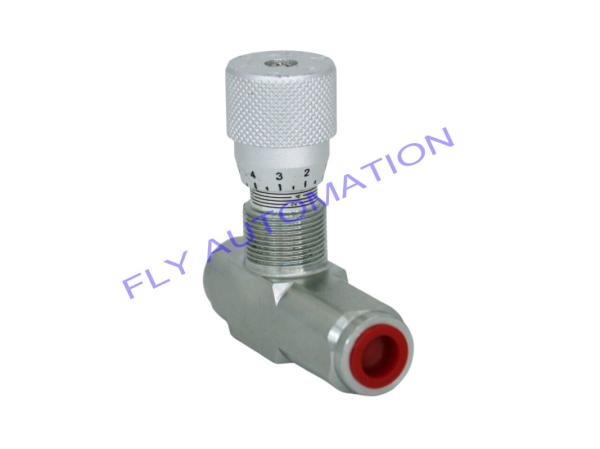

STU Series STU-G3/8 Flow Control Valve Hydraulic Speed Regulating Valve
Description.
1.Series Code:STU Throttle Check Valve 2.Thread Code:G, NPT 3.Nominal Diameter:1/4.3/8. 1/2. 3/4. 1 inch 4.Structure:L-with impacted nut blank-without impacted nut 5.Valve body material:1 -carbon steel 6.Stem material:1-carbon steel 7.Valve core material:1- 400Cr 8.Spring material:1-SWP-B 9.Surface Treatment:1-SILVER ZINC PLATED
Throttle valve, also called check valve, is used in hydraulic system to control the flow and cutoff of oil.
If the oil inlet and outlet of a straight through check valve are in a axial direction, the valve may be connected directly to the system pipe via threaded pipe fittings.
Throttle valve may be used in parallel with overflow valve, relief valve, sequence valve, throttle valve and speed control valve and so to form non-return overflow valve, non-return relief valve, non-return sequence valve, non-return throttle valve, non-return speed control valve and so on.
| Product Description | |
| Max pressure: | 40 Mpa |
| Max flow: | 30 L/min |
| Model: | STU-G3/8 |
| Applicable Medium: | Hydraulic Oil |
Specification
| Model | Connection Thread | Max flow L/min | Max pressure bar |
| STU-G1/4 | 1/4" | 12 | 400 |
| STU-G3/8 | 3/8" | 30 | 400 |
| STU-G1/2 | 1/2" | 50 | 400 |
| STU-G3/4 | 3/4" | 85 | 400 |
| STU-G1 | 1" | 150 | 320 |
FAQ
Q: Where is your factory ? Can we visit your factory?
A: Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We sincerely welcome customers to visit our company and factory.
Q: Could you add our logo on your products?
A: Yes,if your quantity more than 50pcs. we could add your logo on the products.
Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it will be 3-5 weeks if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample for free charge, but do not pay the cost of express freight.
Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment. Payment ways are : T/T, Western Union, Paypal, Alipay.
Q. What’s the shipping way?
A: For small packages, we will choose the door to door express, we cooperated with UPS,DHL,FEDEX,TNT more than 10 years,we gurantee the shipping cost that we offer to you will be the most favorable price among so many suppliers in China. We will send you the tracking number once we got it.
For big orders, By Air or By Sea through your shipping forwarder is acceptable, if you don't have forwarder in China, we will find the most cost-effective one for you.
If you have any other question, welcome contact us as below:
Whatsapp/Botim: 0086-15257858856 Skype: lovelyzlf@hotmail.com Email:airwolf@flyautomatic.com
Phone/Wechat: 0086-18957877902
